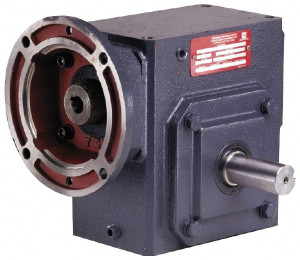

Morse 262Q56LR60 2.62 Centerline Distance, 60:1, 20 RPM Output, 3/4 Input Horsepower, 1,122 Lbs. Max Torque, Speed Reducer 1-1/8" Shaft Diam, Double Shaft Left & Right, 5/8" Bore, 7.12" Long x 4.44" Wide x 8" High, 56C NEMA 262Q56LR60 - 08434862
Brand: Morse- SKU:
- 08434862
- ID:
- 559288
$2,266.62
Morse 262Q56LR60 2.62 Centerline Distance, 60:1, 20 RPM Output, 3/4 Input Horsepower, 1,122 Lbs. Max Torque, Speed Reducer 1-1/8" Shaft Diam, Double Shaft Left & Right, 5/8" Bore, 7.12" Long x 4.44" Wide x 8" High, 56C NEMA, 374 In/Lb. Min Torque
Manufacturer Part #: 262Q56LR60
S/N: 08434862
UNSPSC: 26111500
UPC: 662288353447
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Centerline Distance | 2.6200 | |
| Shaft Type | Double | |
| Ratio | 60 | 1 |
| Maximum Input Horsepower | 3/4 | |
| Nema/Iec Frame Size | 56C NEMA | |
| Minimum Torque (In/Lb) | 374.0 | |
| Maximum Torque (In/Lb.) | 1122.0 | |
| Bore Diameter (Decimal Inch) | 0.6250 | |
| Shaft Diameter (Decimal Inch) | 1.1250 | |
| Minimum Input Horsepower | 0.25 | |
| Output RPM at 1750 Input | 20.0 | |
| Torque Output (In/Lb) with 1/2 Horsepower Motor @ 1750 | 748 | |
| Torque Output (In/Lb) with 1/3 Horsepower Motor @ 1750 | 493 | |
| Torque Output (In/Lb) with 3/4 Horsepower Motor @ 1750 | 1122 | |
| Torque Output (In/Lb) with 1/4 Horsepower Motor @ 1750 | 374 | |
| Height (Decimal Inch) | 8.0000 | |
| Length (Decimal Inch - 4 Decimals) | 7.1200 | |
| Width (Decimal Inch - 4 Decimals) | 4.4400 | |
| UNSPSC Code | 26111500 |
