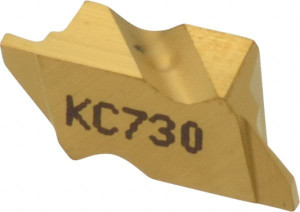

Kennametal NG2031R KC730 Carbide Grooving Insert TiN Finish, RH, 0.79mm Cutting Width, 1.27mm Max Depth, Series Top Notch 1113028 - 08444135
Brand: Kennametal- SKU:
- 08444135
- ID:
- 649912
$41.04
Kennametal NG2031R KC730 Carbide Grooving Insert TiN Finish, RH, 0.79mm Cutting Width, 1.27mm Max Depth, Series Top Notch
Manufacturer Part #: 1113028
S/N: 08444135
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | NG |
| Cutting Width (Decimal Inch) | 0.0311 |
| Cutting Width (mm) | 0.79 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0500 |
| Maximum Depth of Cut (mm) | 1.27 |
| Insert Material | Carbide |
| Manufacturer Grade | KC730 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0035 |
| Corner Radius (mm) | 0.09 |
| Rake | Neutral |
| Insert Size | 2031 |
| Material Grade | C2, C3, C4 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0000 to 0.0750 |
| Maximum Depth Of Cut Range (mm) | 0.00 to 2.00 |
| Lead Angle | 3 |
| Multi-use Tool | No |
| Series | Top Notch |
| Coating Process | PVD |
| UNSPSC Code | 23242105 |
| MSC/Manufacturer Number | NG2031R/L |
| Insert Height (Decimal Inch) | 0.2190 |
| Included Angle Degree | 55 |
| Coating/Finish | TiN |
