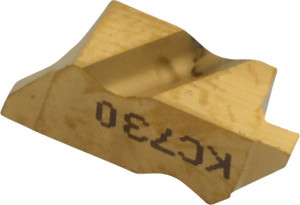

Kennametal NG2047L KC730 Carbide Grooving Insert TiN Finish, LH, 1.19mm Cutting Width, 1.27mm Max Depth, Series Top Notch 1113047 - 08444218

Kennametal NG2047L KC730 Carbide Grooving Insert TiN Finish, LH, 1.19mm Cutting Width, 1.27mm Max Depth, Series Top Notch 1113047 - 08444218

Brand:   Kennametal
SKU:
08444218
ID:
649920
callling
$41.04
Current Stock:
Adding to cart… The item has been added

Kennametal

Kennametal NG2047L KC730 Carbide Grooving Insert TiN Finish, LH, 1.19mm Cutting Width, 1.27mm Max Depth, Series Top Notch

Manufacturer Part #: 1113047

S/N: 08444218

UNSPSC: 23242105

(Minimum Order Quantity=5, Package Quantity=5)

Specifications:

Insert StyleNG
Cutting Width (Decimal Inch)0.0469
Cutting Width (mm)1.19
Insert HandLeft Hand
Maximum Depth of Cut (Decimal Inch)0.0500
Maximum Depth of Cut (mm)1.27
Insert MaterialCarbide
Manufacturer GradeKC730
Full RadiusNo
Corner Radius (Decimal Inch)0.0035
Corner Radius (mm)0.09
RakeNeutral
Insert Size2047
Material GradeC2, C3, C4
Maximum Depth Of Cut Range (Decimal Inch)0.0000 to 0.0750
Maximum Depth Of Cut Range (mm)0.00 to 2.00
Lead Angle3
Multi-use ToolNo
SeriesTop Notch
Coating ProcessPVD
UNSPSC Code23242105
Included Angle Degree55
Coating/FinishTiN
