Kennametal NP3012RK KC730 Carbide Grooving Insert TiN Finish, RH, 4.83mm Cutting Width, 5.08mm Max Depth, Series Top Notch 1114235 - 08445074

Kennametal NP3012RK KC730 Carbide Grooving Insert TiN Finish, RH, 4.83mm Cutting Width, 5.08mm Max Depth, Series Top Notch 1114235 - 08445074

Brand:   Kennametal
SKU:
08445074
ID:
649997
callling
$42.38
Current Stock:
Adding to cart… The item has been added

Kennametal

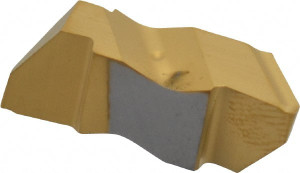

Kennametal NP3012RK KC730 Carbide Grooving Insert TiN Finish, RH, 4.83mm Cutting Width, 5.08mm Max Depth, Series Top Notch

Manufacturer Part #: 1114235

S/N: 08445074

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleNP
Cutting Width (Decimal Inch)0.1902
Cutting Width (mm)4.83
Insert HandRight Hand
Maximum Depth of Cut (Decimal Inch)0.2000
Maximum Depth of Cut (mm)5.08
Insert MaterialCarbide
Manufacturer GradeKC730
Full RadiusNo
Corner Radius (Decimal Inch)0.0135
Corner Radius (mm)0.34
RakePositive
Insert Size3012
Material GradeC2, C3, C4
Maximum Depth Of Cut Range (Decimal Inch)0.2000 to 0.3000
Maximum Depth Of Cut Range (mm)5.00 to 10.00
Lead Angle3
Multi-use ToolNo
SeriesTop Notch
Coating ProcessPVD
Rake Angle10
UNSPSC Code23242105
Chip BreakerK
MSC/Manufacturer NumberNP3012RK
Insert Height (Decimal Inch)0.3440
Included Angle Degree55
Coating/FinishTiN
