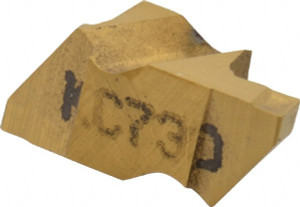

Kennametal NG2062LK KC730 Carbide Grooving Insert TiN Finish, LH, 1.58mm Cutting Width, 2.79mm Max Depth, Series Top Notch 1114305 - 08445348

Kennametal NG2062LK KC730 Carbide Grooving Insert TiN Finish, LH, 1.58mm Cutting Width, 2.79mm Max Depth, Series Top Notch 1114305 - 08445348

Brand:   Kennametal
SKU:
08445348
ID:
650027
callling
$41.04
Current Stock:
Adding to cart… The item has been added

Kennametal

Kennametal NG2062LK KC730 Carbide Grooving Insert TiN Finish, LH, 1.58mm Cutting Width, 2.79mm Max Depth, Series Top Notch

Manufacturer Part #: 1114305

S/N: 08445348

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleNG
Cutting Width (Decimal Inch)0.0622
Cutting Width (mm)1.58
Insert HandLeft Hand
Maximum Depth of Cut (Decimal Inch)0.1098
Maximum Depth of Cut (mm)2.79
Insert MaterialCarbide
Manufacturer GradeKC730
Full RadiusNo
Corner Radius (Decimal Inch)0.0075
Corner Radius (mm)0.19
RakePositive
Insert Size2062
Material GradeC2, C3, C4
Maximum Depth Of Cut Range (Decimal Inch)0.1000 to 0.1500
Maximum Depth Of Cut Range (mm)2.00 to 3.00
Lead Angle3
Multi-use ToolNo
SeriesTop Notch
Coating ProcessPVD
Rake Angle10
UNSPSC Code23242105
Chip BreakerK
Included Angle Degree55
Coating/FinishTiN
