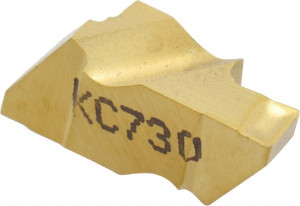

Kennametal NG2094LK KC730 Carbide Grooving Insert TiN Finish, LH, 2.39mm Cutting Width, 2.79mm Max Depth, Series Top Notch 1114306 - 08445355

Brand: Kennametal

SKU:: 08445355

ID:: 650028

$40.23

Current Stock:

Adding to cart… The item has been added

Kennametal NG2094LK KC730 Carbide Grooving Insert TiN Finish, LH, 2.39mm Cutting Width, 2.79mm Max Depth, Series Top Notch

Manufacturer Part #: 1114306

S/N: 08445355

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert Style	NG
Cutting Width (Decimal Inch)	0.0941
Cutting Width (mm)	2.39
Insert Hand	Left Hand
Maximum Depth of Cut (Decimal Inch)	0.1098
Maximum Depth of Cut (mm)	2.79
Insert Material	Carbide
Manufacturer Grade	KC730
Full Radius	No
Corner Radius (Decimal Inch)	0.0075
Corner Radius (mm)	0.19
Rake	Positive
Insert Size	2094
Material Grade	C2, C3, C4
Maximum Depth Of Cut Range (Decimal Inch)	0.1000 to 0.1500
Maximum Depth Of Cut Range (mm)	2.00 to 3.00
Lead Angle	3
Multi-use Tool	No
Series	Top Notch
Coating Process	PVD
Rake Angle	10
UNSPSC Code	23242105
Chip Breaker	K
Included Angle Degree	55
Coating/Finish	TiN
