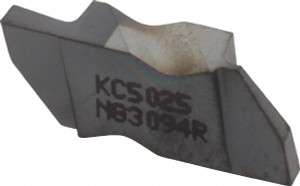

Kennametal NG3094R KC5025 Carbide Grooving Insert TiAlN Finish, RH, 2.39mm Cutting Width, 3.81mm Max Depth, Series Top Notch 2599523 - 08447518

Kennametal NG3094R KC5025 Carbide Grooving Insert TiAlN Finish, RH, 2.39mm Cutting Width, 3.81mm Max Depth, Series Top Notch 2599523 - 08447518

Brand:   Kennametal
SKU:
08447518
ID:
650122
callling
$43.20
Current Stock:
Adding to cart… The item has been added

Kennametal

Kennametal NG3094R KC5025 Carbide Grooving Insert TiAlN Finish, RH, 2.39mm Cutting Width, 3.81mm Max Depth, Series Top Notch

Manufacturer Part #: 2599523

S/N: 08447518

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleNG
Cutting Width (Decimal Inch)0.0941
Cutting Width (mm)2.39
Insert HandRight Hand
Maximum Depth of Cut (Decimal Inch)0.1500
Maximum Depth of Cut (mm)3.81
Insert MaterialCarbide
Manufacturer GradeKC5025
Full RadiusNo
Corner Radius (Decimal Inch)0.0075
Corner Radius (mm)0.19
RakeNeutral
Insert Size3094
Material GradeC2, C6
Maximum Depth Of Cut Range (Decimal Inch)0.1500 to 0.2000
Maximum Depth Of Cut Range (mm)3.00 to 4.00
Lead Angle3
Multi-use ToolNo
SeriesTop Notch
Coating ProcessPVD
UNSPSC Code23242105
MSC/Manufacturer NumberNG3094R/L
Insert Height (Decimal Inch)0.3440
Included Angle Degree55
Coating/FinishTiAlN
