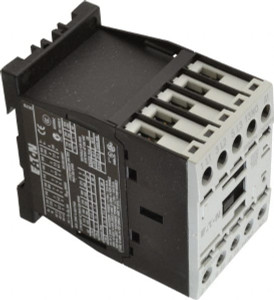

Eaton Cutler-Hammer 3 Pole, 220 Coil VAC at 50 Hz and 240 Coil VAC at 60 Hz, 20 Amp, Nonreversible Open Enclosure IEC Contactor 1 Phase hp: 0.25 at 115V, 0.75 at 200V, 1 at 230V, 3 Phase hp: 1.5 at 200V, 2 at 230V, 3 at 460V XTCE007B10B - 08804585
Brand: Eaton Cutler-Hammer- SKU:
- 08804585
- ID:
- 587939
$188.27
Eaton Cutler-Hammer 3 Pole, 220 Coil VAC at 50 Hz and 240 Coil VAC at 60 Hz, 20 Amp, Nonreversible Open Enclosure IEC Contactor 1 Phase hp: 0.25 at 115 V, 0.75 at 200 V, 1 at 230 V, 3 Phase hp: 1.5 at 200 V, 2 at 230 V, 3 at 460 V, 5 at 575 V, 7 Amp Inductive Load Rating Listed
Manufacturer Part #: XTCE007B10B
S/N: 08804585
UNSPSC: 39121529
UPC: 782116349883
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Number Of Poles | 3 |
| Inductive Load Rating | 7.0A |
| Resistive Load Rating (A) | 22 |
| Amperage | 20 |
| Action | Non Reversible |
| Auxiliary Contact Configuration | NO |
| Reversible | No |
| Enclosure Type | Open |
| Overall Height (Mm - 5 Decimals) | 68.00 |
| Overall Height (Decimal Inch) | 2.6800 |
| Overall Width (Decimal Inch - 4 Decimals) | 1.7700 |
| Overall Width (mm) | 45.00 |
| Overall Depth (Decimal Inch) | 4.6100 |
| Overall Depth (Mm) | 117.00 |
| Standards | ATEX, CCC, CE Marked, CSA, EN/IEC 60947, RoHS Compliant, UL |
