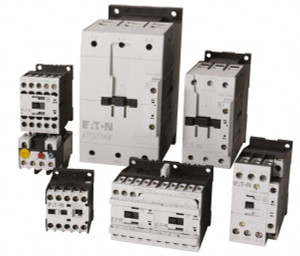

Eaton Cutler-Hammer 3 Pole, 24 Coil VAC, 63 Amp, Nonreversible Open Enclosure IEC Contactor 1 Phase hp: 3 at 115V, 5 at 200V, 7.5 at 230V, 3 Phase hp: 10 at 200V, 15 at 230V, 30 at 460V, 40 at 575V, 40 Amp Inductive Load XTCE040D00T - 08804908
Brand: Eaton Cutler-Hammer- SKU:
- 08804908
- ID:
- 587967
$557.05
Eaton Cutler-Hammer 3 Pole, 24 Coil VAC, 63 Amp, Nonreversible Open Enclosure IEC Contactor 1 Phase hp: 3 at 115 V, 5 at 200 V, 7.5 at 230 V, 3 Phase hp: 10 at 200 V, 15 at 230 V, 30 at 460 V, 40 at 575 V, 40 Amp Inductive Load Rating Listed
Manufacturer Part #: XTCE040D00T
S/N: 08804908
UNSPSC: 39121529
UPC: 782116351565
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Number Of Poles | 3 |
| Inductive Load Rating | 40.0A |
| Resistive Load Rating (A) | 60 |
| Amperage | 63 |
| Action | Non Reversible |
| Coil Voltage | 24Vac |
| Reversible | No |
| Enclosure Type | Open |
| Overall Height (Mm - 5 Decimals) | 104.00 |
| Overall Height (Decimal Inch) | 4.0900 |
| Overall Width (Decimal Inch - 4 Decimals) | 2.1700 |
| Overall Width (mm) | 55.00 |
| Overall Depth (Decimal Inch) | 5.7800 |
| Overall Depth (Mm) | 146.80 |
| Standards | ATEX, CCC, CE Marked, CSA, EN/IEC 60947, RoHS Compliant, UL |
