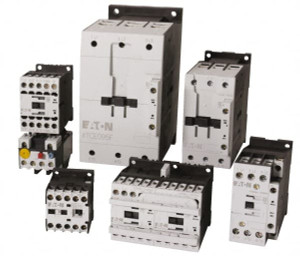

Eaton Cutler-Hammer 3 Pole, 24 to 27 Coil VDC, 80 Amp, Nonreversible Open Enclosure IEC Contactor 1 Phase hp: 10 at 230V, 3 at 115V, 7.5 at 200V, 3 Phase hp: 15 at 200V, 20 at 230V, 40 at 460V, 50 at 575V XTCE050D00TD - 08804965
Brand: Eaton Cutler-Hammer- SKU:
- 08804965
- ID:
- 587968
$668.49
Eaton Cutler-Hammer 3 Pole, 24 to 27 Coil VDC, 80 Amp, Nonreversible Open Enclosure IEC Contactor 1 Phase hp: 10 at 230 V, 3 at 115 V, 7.5 at 200 V, 3 Phase hp: 15 at 200 V, 20 at 230 V, 40 at 460 V, 50 at 575 V, 50 Amp Inductive Load Rating Listed
Manufacturer Part #: XTCE050D00TD
S/N: 08804965
UNSPSC: 39121529
UPC: 782116351619
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Number Of Poles | 3 |
| Inductive Load Rating | 50.0A |
| Resistive Load Rating (A) | 80 |
| Amperage | 80 |
| Action | Non Reversible |
| Coil Voltage | 24 to 27Vdc |
| Reversible | No |
| Enclosure Type | Open |
| Overall Height (Mm - 5 Decimals) | 104.00 |
| Overall Height (Decimal Inch) | 4.0900 |
| Overall Width (Decimal Inch - 4 Decimals) | 2.1700 |
| Overall Width (mm) | 55.00 |
| Overall Depth (Decimal Inch) | 5.7800 |
| Overall Depth (Mm) | 146.80 |
| Standards | ATEX, CCC, CE Marked, CSA, EN/IEC 60947, RoHS Compliant, UL |
