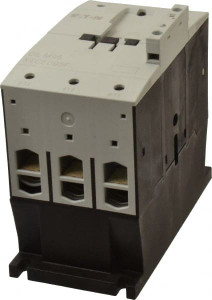

Eaton Cutler-Hammer 3 Pole, 110 Coil VAC at 50 Hz and 120 Coil VAC at 60 Hz, 125 Amp, Nonreversible Open Enclosure IEC Contactor 1 Phase hp: 15 at 200V, 15 at 230V, 7.5 at 115V, 3 Phase hp: 100 at 575V, 25 at 200V, 40 at 230V XTCE095F00A - 08805079
Brand: Eaton Cutler-Hammer- SKU:
- 08805079
- ID:
- 587979
$1,061.32
Eaton Cutler-Hammer 3 Pole, 110 Coil VAC at 50 Hz and 120 Coil VAC at 60 Hz, 125 Amp, Nonreversible Open Enclosure IEC Contactor 1 Phase hp: 15 at 200 V, 15 at 230 V, 7.5 at 115 V, 3 Phase hp: 100 at 575 V, 25 at 200 V, 40 at 230 V, 75 at 460 V, 95 Amp Inductive Load Rating Listed
Manufacturer Part #: XTCE095F00A
S/N: 08805079
UNSPSC: 39121529
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Number Of Poles | 3 |
| Inductive Load Rating | 95.0A |
| Resistive Load Rating (A) | 130 |
| Amperage | 125 |
| Action | Non Reversible |
| Reversible | No |
| Enclosure Type | Open |
| Overall Height (Mm - 5 Decimals) | 170.00 |
| Overall Height (Decimal Inch) | 6.6900 |
| Overall Width (Decimal Inch - 4 Decimals) | 4.3700 |
| Overall Width (mm) | 111.00 |
| Overall Depth (Decimal Inch) | 6.3000 |
| Overall Depth (Mm) | 160.00 |
| Standards | ATEX, CCC, CE Marked, CSA, EN/IEC 60947, RoHS Compliant, UL |
