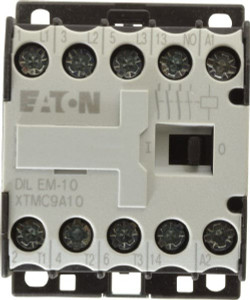

Eaton Cutler-Hammer 3 Pole, 110 Coil VAC at 50 Hz and 120 Coil VAC at 60 Hz, Nonreversible Open Enclosure IEC Contactor 1 Phase hp: 0.5 at 115V, 1 at 200V, 1.5 at 230V, 3 Phase hp: 2 at 200V, 3 at 230V, 5 at 460V XTMC9A10A - 08805251
Brand: Eaton Cutler-Hammer- SKU:
- 08805251
- ID:
- 587947
$179.32
Eaton Cutler-Hammer 3 Pole, 110 Coil VAC at 50 Hz and 120 Coil VAC at 60 Hz, Nonreversible Open Enclosure IEC Contactor 1 Phase hp: 0.5 at 115 V, 1 at 200 V, 1.5 at 230 V, 3 Phase hp: 2 at 200 V, 3 at 230 V, 5 at 460 V, 5 at 575 V, 8.80 Amp Inductive Load Rating Listed
Manufacturer Part #: XTMC9A10A
S/N: 08805251
UNSPSC: 39121529
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Number Of Poles | 3 |
| Inductive Load Rating | 8.8A |
| Resistive Load Rating (A) | 20 |
| Action | Non Reversible |
| Auxiliary Contact Configuration | NO |
| Reversible | No |
| Enclosure Type | Open |
| Overall Height (Mm - 5 Decimals) | 58.00 |
| Overall Height (Decimal Inch) | 2.2800 |
| Overall Width (Decimal Inch - 4 Decimals) | 1.7700 |
| Overall Width (mm) | 45.00 |
| Overall Depth (Decimal Inch) | 3.2700 |
| Overall Depth (Mm) | 83.00 |
| Standards | ATEX, CCC, CE Marked, CSA, EN/IEC 60947, UL |
