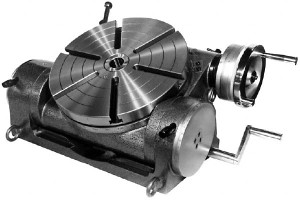

YUASA 10" Table Diam, Tilting Tilting Rotary Machining Table 3MT Center Taper, 11.94mm T-Slot Width, 90:1 Gear Ratio 550-210 - 09150715
Brand: YUASA- SKU:
- 09150715
- ID:
- 452843
$9,567.70
YUASA 10" Table Diam, Tilting Tilting Rotary Machining Table 3MT Center Taper, 11.94mm T-Slot Width, 90:1 Gear Ratio
Manufacturer Part #: 550-210
S/N: 09150715
UNSPSC: 31380000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Setting Position | Tilting |
| Tilting | Yes |
| Table Diameter (Decimal Inch) | 9.8438 |
| T-Slot Width (Decimal Inch) | 0.4700 |
| Center Taper | 3MT |
| Vernier Reading (sec.) | 10.00 |
| Squareness - Clamp to Center Slot (Decimal Inch) | 0.0008 |
| Center Hole Concentricity (mm) | 0.01 |
| Parallelism - Clamp Surface to Base (Decimal Inch) | 0.0008 |
| Base Width (mm) | 255.02 |
| Base Width (Decimal Inch) | 10.0400 |
| Base Length (mm) | 397.00 |
| Overall Height (mm) | 154.94 |
