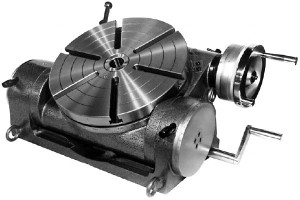

YUASA 12" Table Diam, Tilting Tilting Rotary Machining Table 4MT Center Taper, 13.97mm T-Slot Width, 90:1 Gear Ratio 550-212 - 09150756

Brand: YUASA

SKU:: 09150756

ID:: 452844

$12,129.28

Current Stock:

Adding to cart… The item has been added

YUASA 12" Table Diam, Tilting Tilting Rotary Machining Table 4MT Center Taper, 13.97mm T-Slot Width, 90:1 Gear Ratio

Manufacturer Part #: 550-212

S/N: 09150756

UNSPSC: 31380000

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Setting Position	Tilting
Tilting	Yes
Table Diameter (Decimal Inch)	11.8125
T-Slot Width (Decimal Inch)	0.5500
Center Taper	4MT
Vernier Reading (sec.)	10.00
Squareness - Clamp to Center Slot (Decimal Inch)	0.0008
Center Hole Concentricity (mm)	0.01
Parallelism - Clamp Surface to Base (Decimal Inch)	0.0008
Base Width (mm)	299.97
Base Width (Decimal Inch)	11.8100
Base Length (mm)	447.04
Overall Height (mm)	178.05
