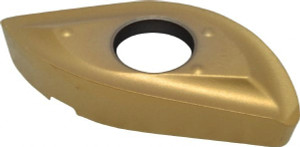

Seco Tools 218.20-0.375ERM05 F40M Carbide Milling Insert TiAlN/TiN Finish, 0.733" Long x 0.152" Thick x 0.322" Wide 00033060 - 09293598

Seco Tools 218.20-0.375ERM05 F40M Carbide Milling Insert TiAlN/TiN Finish, 0.733" Long x 0.152" Thick x 0.322" Wide 00033060 - 09293598

Brand:   Seco Tools
SKU:
09293598
ID:
662475
callling
$65.50
Current Stock:
Adding to cart… The item has been added

Seco Tools

Seco Tools 218.20-0.375ERM05 F40M Carbide Milling Insert TiAlN/TiN Finish, 0.733" Long x 0.152" Thick x 0.322" Wide

Manufacturer Part #: 00033060

S/N: 09293598

UNSPSC: 23291601

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert Style218.20
Insert Size0.375
Insert MaterialSolid Carbide
Insert ShapeBall Nose
Manufacturer GradeF40M
Corner Radius (Decimal Inch)0.3750
Number Of Cutting Edges2
Thickness (Decimal Inch - 4 Decimals)0.1516
Coating/FinishTiAlN, TiN
Relief Angle11.00
Maximum Depth of Cut (Decimal Inch)0.6690
Insert Size Code0.375ER
Material GradeFine Grain
Inscribed Circle (Decimal Inch)0.3224
Thickness Range (Decimal Inch)0.1500 to 0.1750
Corner Radius (Inch)3/8
Inscribed Circle Range (Decimal Inch)0.3000 to 0.3500
Length Range (Decimal Inch)0.7000 to 0.9000
Insert HandRight Hand
Series218.20-0.375
Coating ProcessPVD
Hole Diameter (Decimal Inch)0.1378
RakePositive
Primary Workpiece MaterialSteel, Cast Iron, Superalloys & Titanium
Primary Workpiece Material CodeP, K, S
Secondary Workpiece MaterialCast Iron, Non-Ferrous Metal
Secondary Workpiece Material CodeK, N
Ansi Code218.20-0.375ER-M05
Iso Code218.20-0.375ER-M05
StandardsISO
Rake Angle3
Cutting Edge StyleHoned
Manufacturers Catalog Number218.20-0.375ER-M05
Cutter Series CompatibilityR218.20-0.750
Chip BreakerM05
Material ApplicationSteel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium
UNSPSC Code23291601
ShapeBall Nose
Insert Holding MethodScrew
Coating ClassificationPVD
Single or Double Sided InsertSingle
Included Angle Degree90
Width (Decimal Inch - 4 Decimals)0.3224
Multi-Use ToolYes
Length (Decimal Inch - 4 Decimals)0.7331
