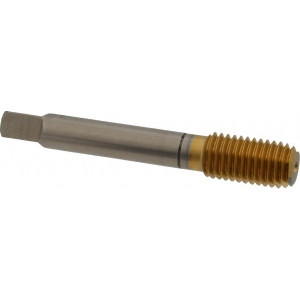

Balax Thread Forming Tap: M14x2.00 Metric Coarse, Bottoming, High Speed Steel, TiN Coated 1" Thread Length, D14, Series BXMB 19154-00T - 09330903
Brand: Balax- SKU:
- 09330903
- ID:
- 781375
$87.21
Balax Thread Forming Tap: M14x2.00 Metric Coarse, Bottoming, High Speed Steel, TiN Coated 1" Thread Length, D14, Series BXMB
Manufacturer Part #: 19154-00T
S/N: 09330903
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (mm) | M14x2 |
| Thread Standard | Metric |
| Chamfer | Bottoming |
| Chamfered Threads | 2.5P |
| Material | High-Speed Steel |
| Coating/Finish | Titanium Nitride |
| Coolant Through | No |
| Class Of Fit | 6H |
| Thread Limit | D14 |
| Overall Length (Inch) | 3-19/32 |
| Overall Length (Decimal Inch) | 3.5938 |
| Overall Length (mm) | 91.28 |
| Thread Direction | Right Hand |
| Thread Length (Inch) | 1 |
| Thread Length (Decimal Inch) | 1.0000 |
| Shank Diameter (Decimal Inch) | 0.4290 |
| Shank Diameter (mm) | 10.90 |
| Application | Blind Hole Threading |
| Series | BXMB |
| Square Size (Decimal Inch) | 0.3220 |
| Square Size (mm) | 8.18 |
| Oil Grooves | 1 |
| UNSPSC Code | 23241600 |
