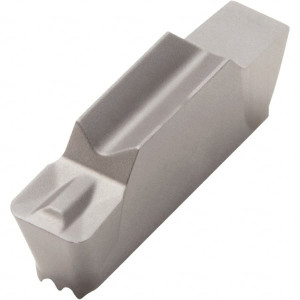

Seco Tools LCMR1604080400MT 883 Carbide Multi-Directional Turning Insert 0.157" Cutting Width, 0.177" Cutting Height, 0.031" Corner Radius 00045653 - 09394800
Brand: Seco Tools- SKU:
- 09394800
- ID:
- 668859
$33.68
Seco Tools LCMR1604080400MT 883 Carbide Multi-Directional Turning Insert 0.157" Cutting Width, 0.177" Cutting Height, 0.031" Corner Radius
Manufacturer Part #: 00045653
S/N: 09394800
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Insert Style | LCMR |
| Insert Size Code | 160408 |
| Insert Material | Solid Carbide |
| Material Grade | C2 |
| Manufacturer Grade | 883 |
| Cutting Height (Decimal Inch) | 0.1770 |
| Maximum Cutting Width (Decimal Inch) | 0.1570 |
| Maximum Cutting Width (mm) | 4.00 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Insert Hand | Neutral |
| Chipbreaker | MT |
| Series | MDT |
| Full Radius Insert | No |
| Relief Angle | 7 |
| Primary Workpiece Material Code | H, M, N, S |
| Full Radius | No |
| Insert Length (Decimal Inch) | 0.6300 |
| Style | LCMR160408-0400-MT |
| Insert Length (mm) | 15.90 |
| Single Or Double End | Single |
| Coating/Finish | Uncoated |
