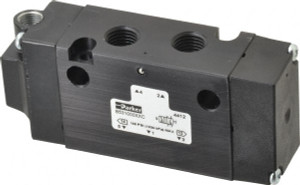

Parker Hannifin 1/4", 4-Way Body Ported Stacking Solenoid Valve 1.4 CV Rate, Air Return, 1.89" High x 4.37" Long B531000XXC - 09667130
Brand: Parker Hannifin Corporation- SKU:
- 09667130
- ID:
- 577229
$178.93
Parker Hannifin 1/4", 4-Way Body Ported Stacking Solenoid Valve 1.4 CV Rate, Air Return, 1.89" High x 4.37" Long
Manufacturer Part #: B531000XXC
S/N: 09667130
UNSPSC: 40141605
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Type | 4-Way Body Ported Valve |
| Valve Design | 4-Way |
| Actuator Type | Single Air Pilot |
| Return Type | Air |
| Inlet Size (Inch) | 1/4 |
| Outlet Size (Inch) | 1/4 |
| Voltage | 12Vdc, 24Vdc, 240Vdc, 120Vac, 24Vac |
| Cv Rating | 1.400 |
| Maximum Working Pressure (bar) | 10.00 |
| Maximum Working Pressure (Psi - 3 Decimals) | 145 |
| Minimum Working Temperature (Deg C) | -15 |
| Minimum Working Temperature (Deg F) | 5 |
| Maximum Working Temperature (F) | 120 |
| Nema Classification | NEMA 4 |
| Number Of Positions | 2 |
| Length (Decimal Inch - 4 Decimals) | 4.3700 |
| Maximum Working Temprature (Deg C) | 49 |
| Height (Decimal Inch) | 1.8900 |
