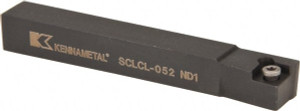

Kennametal LH SCLC 0° Neutral Rake Indexable Turning Toolholder 5° Lead Angle, 5/16" x 5/16" Shank, Takes CC..21.5. Inserts 1094476 - 09828278
Brand: Kennametal- SKU:
- 09828278
- ID:
- 686759
$117.85
Kennametal LH SCLC 0° Neutral Rake Indexable Turning Toolholder 5° Lead Angle, 5/16" x 5/16" Shank, Takes CC..21.5. Inserts
Manufacturer Part #: 1094476
S/N: 09828278
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Toolholder Style | SCLC |
| Hand of Holder | Left Hand |
| Insert Compatibility | CC..21.5. |
| Insert Holding Method | Screw |
| Shank Width (Inch) | 5/16 |
| Shank Height (Inch) | 5/16 |
| Overall Length (Decimal Inch) | 2.5000 |
| Shank Height (mm) | 7.94 |
| Overall Length (mm) | 63.50 |
| Coolant Through | No |
| Rake | Neutral |
| Rake Angle | 0 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.3125 |
| Shank Height (Decimal Inch) | 0.3250 |
| Series | Screw-On |
| Overall Length (Inch) | 2-1/2 |
| Head Length (Decimal Inch) | 0.5000 |
| Back of Bar to Cutting Edge (Inch) | 3/8 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | CC.. 2151 |
| Coating Classification | Kennametal |
