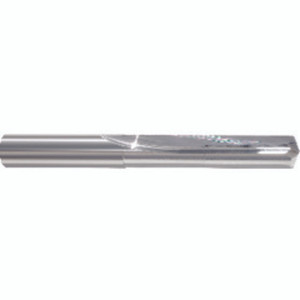

Morse Cutting Tools 50819 Solid Carbide Drill, 19/64" Dia. x 19/64" Shank Dia. x 2-3/4" OAL x 1-9/16" LCF, 140 Degrees, Straight Flute, Uncoated, Series 5376 - 1019577
Brand: Morse Cutting Tools- SKU:
- 1019577
- ID:
- 858842
| Cutting Diameter | 19/64" |
| Coating | Uncoated |
| Coolant Supply Property | External |
| Point Angle | 140 Degrees |
| Flute Length | 1-9/16" |
| Overall Length | 2-3/4" |
| Flute Count | 2 |
| Flute Helix Angle | 0 Degrees |
| Shank Type | Round |
| Cutting Edge Material | Carbide |
| Point Shape | Notch |
$51.83
Morse Cutting Tools Solid Carbide Drill, 19/64" Dia. x 19/64" Shank Dia. x 2-3/4" OAL x 1-9/16" LCF, 140 Degrees, Straight Flute, Uncoated, Series 5376 - 1019577
5376 19/64" ST/FL DRL SC
Manufacturer Part Number: 50819
Trade Name: SOLID MASTER
Country of Manufacture: USA
Specifications:
| SKU | 1019577 |
| Manufacturer Part Number | 50819 |
| Legacy Product Number | MT1350819 |
| HQ Product Code | MRT50819 |
| Series/List # | 5376 |
| Drill Bit Size / Cutting Diameter | 19/64" |
| Decimal Equivalent | 0.2969" |
| Length Group | Straight Flute |
| Coating | Uncoated |
| Connection Diameter Machine Side | 19/64" |
| Coolant Supply Property | External |
| Point Angle | 140 Degrees |
| Tool Type | Solid Carbide Drills |
| Usable Length | 1-9/16" |
| Length Chip Flute | 1-9/16" |
| Overall Length | 2-3/4" |
| Flute Count | 2 |
| Cutting Direction | Right Hand |
| Dimension Units | Inch |
| Drill Bit Size / Cutting Diameter - Inch | 19/64" |
| Flute Helix Angle | 0 Degrees |
| Shank Type | Round |
| Cutting Edge Material | Carbide |
| Point Shape | Notch |
| Measurement Type | Inch |
| Body Material | Carbide |
