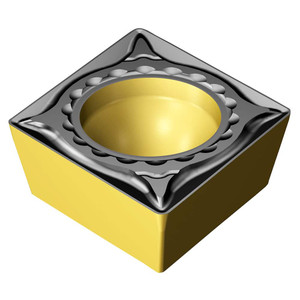

Sandvik Coromant Turning Inserts, Insert Style: CPMT, Insert Size: 32.51, Material: Carbide, Inscribed Circle (Decimal Inch): 0.375, Thickness (Decimal Inch): 0.1563, Corner Radius (Decimal Inch): 0.0156 8019500 - 10795482
Brand: Sandvik Coromant- SKU:
- 10795482
- ID:
- 674093
$22.41
Sandvik Coromant Turning Inserts, Insert Style: CPMT, Insert Size: 32.51, Material: Carbide, Inscribed Circle (Decimal Inch): 0.375, Thickness (Decimal Inch): 0.1563, Corner Radius (Decimal Inch): 0.0156
Manufacturer Part #: 8019500
S/N: 10795482
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 11 |
| Insert Style | CPMT |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer Grade | 4425 |
| Coating/Finish | TiCN, Al2O3, TiN |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | CPMT-PM |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Insert Shape Code | C |
| Insert Holding Method | Clamp, Screw |
| Clearance Code | P |
| Tolerance Code | M |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Secondary Workpiece Material Code | K |
| Iso Code | CPMT 09 T3 04-PM 4425 |
| Manufacturers Catalog Number | CPMT 09 T3 04-PM 4425 |
| Chip Breaker | PM |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.51 |
