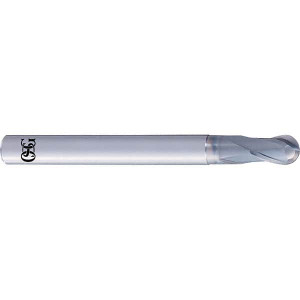

OSG Ball End Mills, Mill Diameter (Inch): 1/4, Mill Diameter (Decimal Inch): 0.2500, Number of Flutes: 2, Length of Cut (Inch): 1/4, Length of Cut (Decimal Inch): 0.3740, Material: Solid Carbide 84100523 - 11438116
Brand: OSG USA, INC.- SKU:
- 11438116
- ID:
- 610448
$82.57
OSG Ball End Mills, Mill Diameter (Inch): 1/4, Mill Diameter (Decimal Inch): 0.2500, Number of Flutes: 2, Length of Cut (Inch): 1/4, Length of Cut (Decimal Inch): 0.3740, Material: Solid Carbide
Manufacturer Part #: 84100523
S/N: 11438116
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Inch) | 1/4in |
| Mill Diameter (Decimal Inch) | 0.2500in |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 1/4 |
| Coating/Finish | DUROREY |
| Overall Length (Inch) | 3in |
| Shank Diameter (Inch) | 1/4in |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 20 |
| Overall Length (Decimal Inch) | 3.0000in |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.2000 to 0.4000 |
| Length Type | Stub |
| Helix Style | Low |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Neck Diameter (Decimal Inch) | 0.2460in |
| Nose Radius (Decimal Inch) | 0.1250 |
| Neck Length (Decimal Inch) | 0.0000 |
| Reach Length (Decimal Inch) | 0.3740 |
| Mill Diameter Tolerance | +0.00000/-0.00028 in |
| Shank Diameter Tolerance | h4 |
| Maximum Helix Angle | 20 |
| Minimum Helix Angle | 20 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 8410 |
| Flute Type | Helical |
| UNSPSC Code | 27112803 |
| Additional Information | 2-Flute High-Precision Finishing Carbide Ball End Mill For High-Hardness Steels |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Coarse |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3740in |
| Manufacturers Catalog Number | 84100523 |
| System Of Measurement | Fractional Inch |
