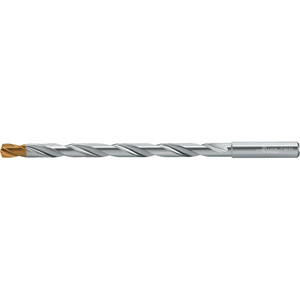

Walter Titex Extra Length Drill Bits, Drill Bit Size (mm): 0.4331, Drill Bit Size: 0.4331, Drill Point Angle: 140, Tool Material: Solid Carbide, Drill Bit Material: Solid Carbide, Coated: Coated 7378890 - 12236709
Brand: Walter Titex- SKU:
- 12236709
- ID:
- 710065
$739.11
Walter Titex Extra Length Drill Bits; Drill Bit Size (mm): 0.4331 ; Drill Bit Size: 0.4331 ; Drill Point Angle: 140 ; Tool Material: Solid Carbide ; Drill Bit Material: Solid Carbide ; Coated: Coated
Manufacturer Part #: 7378890
S/N: 12236709
UNSPSC: 23241637
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Tool Material | Solid Carbide |
| Coating/Finish | TiSiAlCrN |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Drill Point Angle | 140 |
| Series | DC160-12-A1 |
| Cutting Direction | Right Hand |
| Tool Application | Blind Hole, Cross Hole, Inclined Hole Exit, Stack Drilling |
| Drill Bit Diameter Tolerance | m7 |
| Number Of Flutes | 2 |
| Primary Workpiece Material | Alloy, Titanium Alloy |
| Primary Workpiece Material Code | K, N, P, S |
| Secondary Workpiece Material | Glass, Graphite |
| Secondary Workpiece Material Code | H, M, O |
| Standards | ANSI, DIN 6535 HA, ISO |
| Drill Bit Size (Decimal Inch) | 0.4331 |
| Overall Length (Decimal Inch) | 8.1100 |
| Shank Diameter (Decimal Inch) | 0.4720 |
| Shank Length (Decimal Inch) | 1.7720 |
| Flute Length (Decimal Inch) | 6.2200 |
| Flute By Diameter Ratio | 12xD |
| Maximum Drilling Depth (Decimal Inch) | 5.5120 |
| UNSPSC Code | 23241637 |
