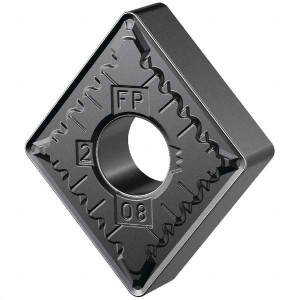

Kennametal CNMG432FP KCS10B Carbide Turning Insert AlTiN Finish, 0.5077" Long, 0.2031" Inscribed Circle, 1/32" Corner Radius, Diamond/Rhombic 6687082 - 12256327
Brand: Kennametal- SKU:
- 12256327
- ID:
- 673202
$30.01
Kennametal CNMG432FP KCS10B Carbide Turning Insert AlTiN Finish, 0.5077" Long, 0.2031" Inscribed Circle, 1/32" Corner Radius, Diamond/Rhombic
Manufacturer Part #: 6687082
S/N: 12256327
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 0 |
| Insert Style | CNMG |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 80degree |
| Manufacturer Grade | KCS10B |
| Coating/Finish | AlTiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | KENLOC |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Carbide |
| Insert Shape | Diamond 80 |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Maximum Depth of Cut (Decimal Inch) | 0.1691 |
| Insert Holding Method | Clamp, Pin |
| Width (Inch) | 1/2in |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5077 |
| Primary Workpiece Material | Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | M, S |
| Iso Code | CNMG120408FP |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 6687082 |
| Material Grade | S10 |
| Coating Classification | PVD |
| Chip Breaker | FP |
| Rake Angle | 15 |
| Cutting Edge Style | Honed |
| Industry Standard Number | CNMG432FP |
| Width (Decimal Inch - 4 Decimals) | 0.5000in |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Turning, Facing, Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
