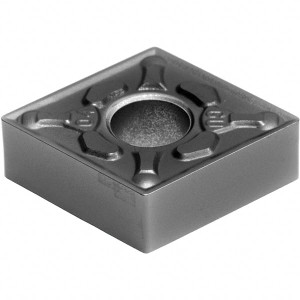

Sumitomo CNMG432EGU-AC5015S Carbide Turning Insert TiAlSiN Finish, Neutral, 1/2" Inscribed Circle, 0.0313" Corner Radius, 3/16" Thick, 80° Diamond, Series AC5000S 19T5335 - 12597894
Brand: Sumitomo- SKU:
- 12597894
- ID:
- 677520
$15.23
Sumitomo CNMG432EGU-AC5015S Carbide Turning Insert TiAlSiN Finish, Neutral, 1/2" Inscribed Circle, 0.0313" Corner Radius, 3/16" Thick, 80° Diamond, Series AC5000S
Manufacturer Part #: 19T5335
S/N: 12597894
UNSPSC: 23242105
(Minimum Order Quantity=10, Package Quantity=1)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 0 |
| Insert Style | CNMG |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 80.0 |
| Manufacturer Grade | AC5015S |
| Coating/Finish | TiAlSiN |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | AC5000S |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Solid Carbide |
| Insert Shape | Diamond |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Insert Holding Method | Screw |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5079 |
| Primary Workpiece Material | Non-Ferrous Metal, Superalloy |
| Primary Workpiece Material Code | N, S |
| Ansi Code | CNMG432EGU |
| Iso Code | CNMG120408N-GU |
| Standards | ANSI, ISO 13399 |
| Manufacturers Catalog Number | CNMG432EGUAC5015S |
| Cutting Direction | Neutral |
| Material Grade | S10 |
| Proprietary Coating Designation | Absotech Bronze |
| Chip Breaker | EGU |
| Rake Angle | 7 |
| Full Radius | No |
| Insert Size Code | 432 |
