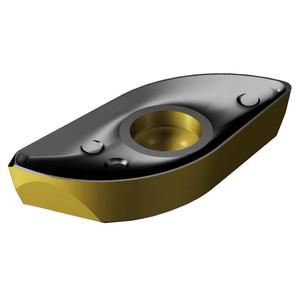

Sandvik Coromant R216-3206M-M 4340 Carbide Milling Insert TiCN/Al2O3/TiN Finish, 17.9mm Long x 6.35mm Thick 7564466 - 13043526
Brand: Sandvik Coromant- SKU:
- 13043526
- ID:
- 662406
$100.71
Sandvik Coromant R216-3206M-M 4340 Carbide Milling Insert TiCN/Al2O3/TiN Finish, 17.9mm Long x 6.35mm Thick
Manufacturer Part #: 7564466
S/N: 13043526
UNSPSC: 23291601
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Insert Style | R216 |
| Insert Size | 32 |
| Insert Material | Solid Carbide |
| Insert Shape | Ball Nose |
| Manufacturer Grade | 4340 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2500 |
| Thickness (mm) | 6.35 |
| Coating/Finish | TiCN, Al2O3, TiN |
| Maximum Depth of Cut (Decimal Inch) | 1.1260 |
| Insert Size Code | 3206 |
| Material Grade | P40, M40, K40 |
| Thickness (Inch) | 1/4 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Length Range (Decimal Inch) | 1.0000+ |
| Insert Hand | Right Hand |
| Series | R216 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.2323 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron |
| Primary Workpiece Material Code | P, M, K |
| Ansi Code | R216-32 06 M-M 4340 |
| Iso Code | R216-32 06 M-M 4340 |
| Standards | ANSI, ISO |
| Convex Radius (Decimal Inch) | 0.6299 |
| Rake Angle | 0 |
| Manufacturers Catalog Number | R216-32 06 M-M 4340 |
| Cutter Series Compatibility | R216 |
| Chip Breaker | M |
| Material Application | Steel, Stainless Steel, Cast Iron |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Length (mm) | 17.90 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 1.1260 |
