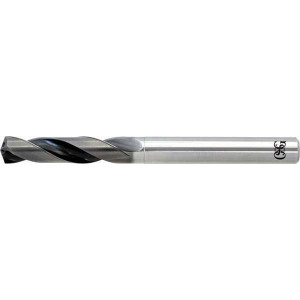

OSG 3/32" 140° Screw Machine Drill Bit EgiAs Finish, Right Hand Cut, Spiral Flute, Standard Shank 520009312 - 14935308
Brand: OSG USA, INC.- SKU:
- 14935308
- ID:
- 738353
$101.90
OSG 3/32" 140° Screw Machine Drill Bit EgiAs Finish, Right Hand Cut, Spiral Flute, Standard Shank
Manufacturer Part #: 520009312
S/N: 14935308
UNSPSC: 23000000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 3/32 |
| Drill Bit Size (mm) | 2.38 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Titanium, Titanium Alloy |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Shank Diameter (mm) | 3.00 |
| Series | 5200 |
| Web Thinning | R-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0 to -0.014 mm |
| Flute Length (mm) | 15.00 |
| Drill Bit Size Range (Decimal Inch) | 0.0000 to 0.1000 |
