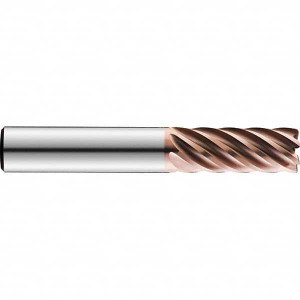

KYOCERA SGS 1", 2-1/2" LOC, 1" Shank Diam, 5-1/2" OAL, 7 Flute Solid Carbide Square End Mill Single End, Ti-NAMITE-M Finish, Spiral Flute, 37° Variable Helix, Right Hand Cut, Right Hand Flute, Regular Length 77293 - 15162175
Brand: KYOCERA SGS- SKU:
- 15162175
- ID:
- 637295
$631.26
KYOCERA SGS 1", 2-1/2" LOC, 1" Shank Diam, 5-1/2" OAL, 7 Flute Solid Carbide Square End Mill Single End, Ti-NAMITE-M Finish, Spiral Flute, 37° Variable Helix, Right Hand Cut, Right Hand Flute, Regular Length
Manufacturer Part #: 77293
S/N: 15162175
UNSPSC: 27112803
UPC: 691781772936
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Decimal Inch) | 1.0000 |
| Mill Diameter (Inch) | 1 |
| Number Of Flutes | 7 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 2-1/2 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 5-1/2 |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Helix Angle | 37 |
| Primary Workpiece Material Code | H, K, M, N, P, S |
| Variable Helix | Yes |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Material Grade | Micrograin |
| Length Type | Regular |
| Mill Diameter Tolerance | h6 |
| Shank Diameter Tolerance | h6 |
| Overall Length Tolerance | +0.062/-0.062 in, +0.062/-0.062 mm |
| Series | 77 |
| PSC Code | 3445 |
