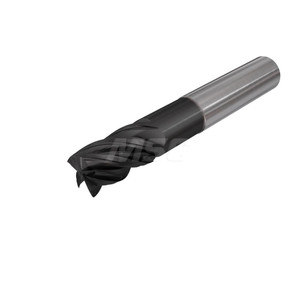

Iscar Corner Radius & Corner Chamfer End Mills, Number of Flutes: 4 3398063 - 16457889
Brand: Iscar- SKU:
- 16457889
- ID:
- 615727
$39.44
Iscar Corner Radius & Corner Chamfer End Mills, Number of Flutes: 4
Manufacturer Part #: 3398063
S/N: 16457889
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Inch) | 3/8 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1-1/2 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiCrSiN |
| Overall Length (Inch) | 2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 2.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Type | Short |
| Flute Type | Spiral, Helical |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Reach Length (Decimal Inch) | 0.3750 |
| Reach Length (Inch) | 3/8 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material Code | P, M, K, S, H |
| UNSPSC Code | 27112803 |
| Material Grade | Submicron |
| Series | ECI-4-VF |
| Material Application | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium, Hard Material |
| Coating Classification | PVD |
| For Use With. | Toolholder |
