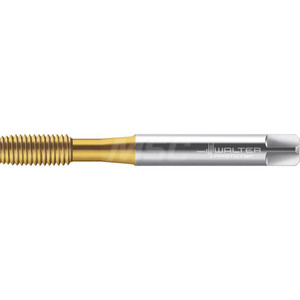

Walter Prototyp Thread Forming Tap: M3 DIN 2174, 6HX Class of Fit, 2 to 3P, High Speed Steel, TiN Coated 9 mm Thread Length, 56 mm OAL, Series TC410 7427498 - 18336925
Brand: Walter Prototyp- SKU:
- 18336925
- ID:
- 783289
$70.81
Walter Prototyp Thread Forming Tap: M3 DIN 2174, 6HX Class of Fit, 2 to 3P, High Speed Steel, TiN Coated 9 mm Thread Length, 56 mm OAL, Series TC410
Manufacturer Part #: 7427498
S/N: 18336925
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (mm) | M3x0.5 |
| Thread Standard | Metric |
| Chamfer | Modified Bottoming |
| Chamfered Threads | 2-3P |
| Material | High-Speed Steel-E |
| Coating/Finish | Titanium Nitride |
| Coolant Through | No |
| Class Of Fit | 6HX |
| Overall Length (Decimal Inch) | 2.2047 |
| Overall Length (mm) | 56.00 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.3543 |
| Thread Length (mm) | 9.00 |
| Shank Diameter (Decimal Inch) | 0.1378 |
| Shank Diameter (mm) | 3.50 |
| Application | Blind Hole Threading, Through-Hole Threading |
| Series | TC410 |
| Tapping Depth (Decimal Inch) | 0.7087 |
| Tapping Depth (mm) | 18.00 |
| Square Size (Decimal Inch) | 0.1100 |
| Square Size (mm) | 2.79 |
| Flute By Diameter Ratio | 3xD |
| Material Grade | WY80AD |
| Oil Grooves | 4 |
| Material Application Code | P, M, K, N, S |
| Trade Name | TC410 Advance |
