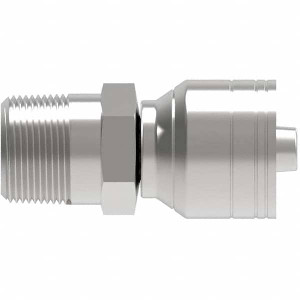

Eaton Hydraulic Hose Fittings & Couplings, Type: Male Pipe, Rigid, Hose Diameter: 1/2 (Inch), Hose Size: -12, Thread Size: 1/2-14, Thread Type: MPT, Material: Carbon Steel 12Z-108-BG - 19152412
Brand: Eaton- SKU:
- 19152412
- ID:
- 519857
$68.48
Eaton Hydraulic Hose Fittings & Couplings, Type: Male Pipe, Rigid, Hose Diameter: 1/2 (Inch), Hose Size: -12, Thread Size: 1/2-14, Thread Type: MPT, Material: Carbon Steel
Manufacturer Part #: 12Z-108-BG
S/N: 19152412
UNSPSC: 40141734
UPC: 639789291899
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Fitting Type | Male Pipe Rigid Fitting |
| Hose Inside Diameter (Decimal Inch) | 0.7500 |
| Hose Outside Diameter (Decimal Inch) | 0.5000 |
| Hose Size | 12 |
| Material | Steel |
| Thread Size (Inch) | 1/2-14 |
| Shape | Straight |
| Connection Type | Threaded |
| Overall Length (Decimal Inch) | 2.7800 |
| Overall Length (mm) | 2.78 |
| For Use With | EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, 08), H1812 (-04 thru -20), H190, H190H, H1981 (-04, |
| Standards | SAE J1176 |
| Series | Z |
| Shaft Type | MPT |
| Hose Diameter (Inch) | 1/2 |
| Hex Size (Inch - 0 Decimals) | 1-1/8 |
