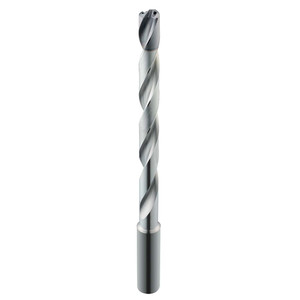

KYOCERA SGS 6.4mm 135° Spiral Flute Solid Carbide Taper Length Drill Bit TX Finish, 76mm Flute Length, 114.0003mm OAL, Standard Point, Cylindrical Shank, Through Coolant, Series 142P 66640 - 19243641
Brand: KYOCERA SGS- SKU:
- 19243641
- ID:
- 746524
$335.80
KYOCERA SGS 6.4mm 135° Spiral Flute Solid Carbide Taper Length Drill Bit TX Finish, 76mm Flute Length, 114.0003mm OAL, Standard Point, Cylindrical Shank, Through Coolant, Series 142P
Manufacturer Part #: 66640
S/N: 19243641
UNSPSC: 23241600
UPC: 691781666402
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Tool Material | Solid Carbide |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | Ti-NAMITE-X |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Threaded Shank | No |
| Shank Diameter (mm) | 8.00 |
| Flute Length (Decimal Inch) | 2.9921 |
| Flute Length x Diamter Ratio | 8xD |
| Material Application3 | Universal |
| Overall Length (mm) | 114 |
| Overall Length (Decimal Inch) | 4-31/64 |
| Series | 142P |
| Flute Length X Diameter Ratio | 8xD |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 35.99 |
| Shank Length (Inch) | 1-13/32 |
| Flute Length (mm) | 76.00 |
| Drill Point Length (mm) | 1.33 |
| Drill Bit Diameter Tolerance | +.00024 to +.00083 in, +0.006 to +0.021 mm |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 6537 |
| Drill Bit Grade | High Performance |
| Spiral Type | Regular |
| Specification Designation | DIN |
| Material Grade | Micrograin |
| PSC Code | 3455 |
| UNSPSC Code | 23241600 |
