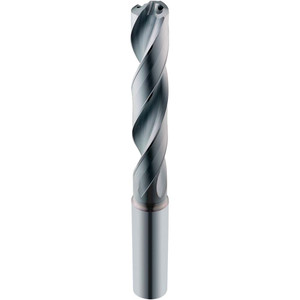

KYOCERA SGS #29 135° Solid Carbide Jobber Drill TX Finish, Right Hand Cut, Spiral Flute, Cylindrical Shank, 66mm OAL, Standard Point, Series 142P 56437 - 19244508
Brand: KYOCERA SGS- SKU:
- 19244508
- ID:
- 727626
$182.48
KYOCERA SGS #29 135° Solid Carbide Jobber Drill TX Finish, Right Hand Cut, Spiral Flute, Cylindrical Shank, 66mm OAL, Standard Point, Series 142P
Manufacturer Part #: 56437
S/N: 19244508
UNSPSC: 23241634
UPC: 691781564371
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Wire) | #29 |
| Drill Bit Size (mm) | 3.45 |
| Drill Bit Size (Decimal Inch) | 0.136 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | Ti-NAMITE-X |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Specification Number | DIN 6537 |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3100 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Flute Length (mm) | 28.00 |
| Flute Length (Decimal Inch) | 1.1024 |
| Series | 142P |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6.00 |
| Maximum Drilling Depth (Decimal Inch) | 2.4803 |
| Maximum Drilling Depth (mm) | 63.00 |
| Shank Length (mm) | 36.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Number of Flats | 0 |
| Drill Point Length (mm) | 0.72 |
| Drill Point Length (Decimal Inch) | 0.0282 |
| Drill Bit Diameter Tolerance | +.00024 to +.00083 in, +0.006 to +0.021 mm |
| Web Thinning | Web-Thinned |
| Shank Type | Straight-Cylindrical |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.1000 - 0.1500 |
| Material Grade | Micrograin |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
