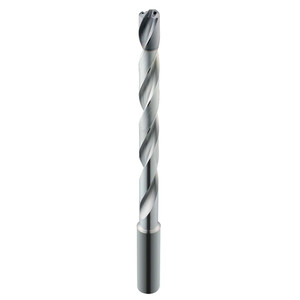

KYOCERA SGS 11/32" 135° Spiral Flute Solid Carbide Taper Length Drill Bit TX Finish, 95mm Flute Length, 141.9987mm OAL, Standard Point, Cylindrical Shank, Through Coolant, Series 142P 56490 - 19245091
Brand: KYOCERA SGS- SKU:
- 19245091
- ID:
- 746549
$394.42
KYOCERA SGS 11/32" 135° Spiral Flute Solid Carbide Taper Length Drill Bit TX Finish, 95mm Flute Length, 141.9987mm OAL, Standard Point, Cylindrical Shank, Through Coolant, Series 142P
Manufacturer Part #: 56490
S/N: 19245091
UNSPSC: 23241600
UPC: 691781564906
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 11/32 |
| Drill Bit Size (mm) | 8.73 |
| Drill Bit Size (Decimal Inch) | 0.3438 |
| Tool Material | Solid Carbide |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | TX |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Cylindrical |
| Threaded Shank | No |
| Shank Diameter (mm) | 10.00 |
| Flute Length (Decimal Inch) | 3.7402 |
| Flute Length x Diamter Ratio | 8xD |
| Material Application3 | Universal |
| Overall Length (mm) | 141.99 |
| Series | 142P |
| Flute Length X Diameter Ratio | 8xD |
| Maximum Drilling Depth (Decimal Inch) | 3.7402 |
| Maximum Drilling Depth (mm) | 95.00 |
| Shank Length (Decimal Inch) | 1.5748 |
| Shank Length (mm) | 40.00 |
| Flute Length (Inch) | 4-31/64 |
| Shank Length (Inch) | 1-49/64 |
| Flute Length (mm) | 95.00 |
| Drill Point Length (Decimal Inch) | 0.0712 |
| Drill Point Length (mm) | 1.81 |
| Drill Bit Diameter Tolerance | +.00028/+.00098 in, +0.007/+0.025 mm |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 6537 |
| Drill Bit Grade | High Performance |
| Spiral Type | Regular |
| Specification Designation | DIN |
| Material Grade | Micrograin |
