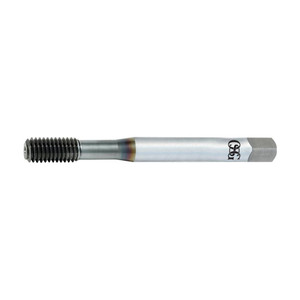

OSG Thread Forming Tap: M3x0.50 Metric, Modified Bottoming, High Speed Steel-CO, TiCN Coated 6 mm Thread Length, 49 mm OAL, D6, Series 14101 1410107000 - 19417260
Brand: OSG USA, INC.- SKU:
- 19417260
- ID:
- 783099
$21.59
OSG Thread Forming Tap: M3x0.50 Metric, Modified Bottoming, High Speed Steel-CO, TiCN Coated 6 mm Thread Length, 49 mm OAL, D6, Series 14101
Manufacturer Part #: 1410107000
S/N: 19417260
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (mm) | M3x0.5 |
| Thread Standard | Metric |
| Chamfer | Modified Bottoming |
| Chamfered Threads | 2-2.5P |
| Material | Cobalt |
| Coating/Finish | Bright |
| Coolant Through | No |
| Thread Limit | D6 |
| Overall Length (Decimal Inch) | 1.9291 |
| Overall Length (mm) | 49.20 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.2441 |
| Thread Length (mm) | 6.20 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Shank Diameter (mm) | 3.58 |
| Square Length (mm) | 4.76 |
| Material Application | Alloy Steel, Aluminum, Carbon Steel, Die Steel, Hardened Steel, Stainless Steel |
| Application | Blind Hole Threading |
| Series | 14101 |
| Tapping Depth (Decimal Inch) | 0.6299 |
| Tapping Depth (mm) | 16.00 |
| Square Size (Decimal Inch) | 0.1100 |
| Square Size (mm) | 2.79 |
| Material Application Code | P, N |
| Trade Name | HY-PRO NRT |
