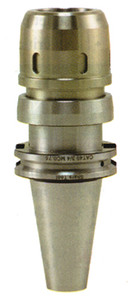

Precise CAT40 Milling Chuck-Collet Series MC1.25 - 202-803
Brand: Precise- SKU:
- 202-803
- ID:
- 335167
| Range | 1/4"-1" |
| D | 2.68" |
| d (Shank Dia.) | 1-1/4" |
| L | 3.875" |
$225.00
Precise CAT40 Milling Chuck-Collet Series MC1.25 - 202-803
- Integrated needle bearing provides more contact surface to provide uniform gripping force and prevent distortion from clamping.
- Provides up to 5x gripping power than ER & TG collet chucks.
- Ideal choice for roughing and heavy milling using solid carbide and indexable end mills.
- Unique dust-proof design to extend tool holder life.
- Taper precision ground to ATC3 standard and taper and flange hardened to 54-56Rc.
- Balanced to G2.5 30,000 RPM suitable high speed machining process.
- Concentricity at the collet bore within 0.00012”/3 micron and concentricity within 0.0004” at 4xD.
- Collet wrench is included.
For More Precise CAT40 Milling Chucks Click Here
