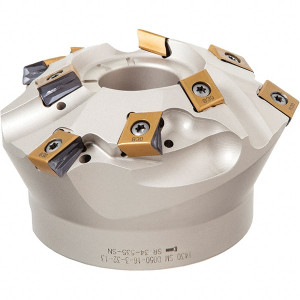

Iscar 3.388" Cut Diam, 1" Arbor Hole, 1.18" Max Depth of Cut, 60° Indexable Chamfer & Angle Face Mill Takes 9 Inserts, T490 LN Insert, Right Hand Cut, Through Coolant, Series Helitang 3106949 - 30708879
Brand: Iscar- SKU:
- 30708879
- ID:
- 680456
$1,139.49
Iscar 3.388" Cut Diam, 1" Arbor Hole, 1.18" Max Depth of Cut, 60° Indexable Chamfer & Angle Face Mill Takes 9 Inserts, T490 LN Insert, Right Hand Cut, Through Coolant, Series Helitang
Manufacturer Part #: 3106949
S/N: 30708879
UNSPSC: 23291600
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
| Minimum Cutting Diameter (Inch) | 2 |
| Maximum Cutting Diameter (Decimal Inch) | 3.3880 |
| Maximum Depth of Cut (Decimal Inch) | 1.1800 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Compatible Insert Size Code | T490 LN |
| Cutter Style | T460 SM |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | Helitang |
| Hub Diameter (Decimal Inch) | 2.3600 |
| Keyway Width (Decimal Inch) | 0.3750 |
| Overall Height (Decimal Inch) | 2.1650 |
| Standards | ISO |
| Maximum Insert Radius (Decimal Inch) | 0.1220 |
| Counterbore Diameter (Decimal Inch) | 0.7800 |
| Complete Insert Compatibility | T490 LNAR 1306PN-R, T490 LNAR 1306PN-R-P, T490 LNHT 1306PN-R PL, T490 LNHT 1306PNTL, T490 LNHT 1306PNTR, T490 LNMT 1306PNTR, T490 LNMT 1306PNTR-CS |
| Number Of Cutter Inserts | 9 |
| Coolant Through | Yes |
| Product Service Code | 3455 |
