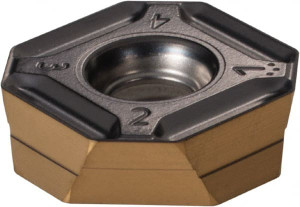

Iscar IQ845SYHU0704ADNMM 808 Carbide Milling Insert TiAlN/AlTiN/TiN Finish, 0.165" Thick 5607522 - 30730360
Brand: Iscar- SKU:
- 30730360
- ID:
- 660102
$42.64
Iscar IQ845SYHU0704ADNMM 808 Carbide Milling Insert TiAlN/AlTiN/TiN Finish, 0.165" Thick
Manufacturer Part #: 5607522
S/N: 30730360
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | SYHU |
| Insert Size | 07 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | IC808 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.79 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1650 |
| Coating/Finish | TiAlN, AlTiN, TiN |
| Relief Angle | 0 |
| Maximum Depth of Cut (Decimal Inch) | 0.1810 |
| Maximum Depth of Cut (mm) | 4.60 |
| Insert Size Code | 0704 |
| Material Grade | Submicron |
| Inscribed Circle (Decimal Inch) | 0.5433 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Series | DOVEIQMILL |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.5118 |
| Rake | Negative |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium, Hard Material |
| Primary Workpiece Material Code | P, M, K, S, H |
| Secondary Workpiece Material Code | H, S |
| Ansi Code | IQ845 SYHU 0704ADN-MM IC808 |
| Iso Code | IQ845 SYHU 0704ADN-MM |
| Standards | ANSI, ISO 13399 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | IQ845 SYHU 0704ADN-MM IC808 |
| Cutter Series Compatibility | IQ845 |
| Chip Breaker | MM |
| Material Application | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium, Hard Material |
| Insert Holding Method | Screw |
| Coating Classification | Sumotec PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5433 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5433 |
