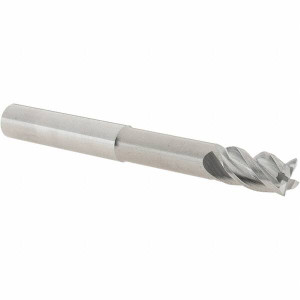

Iscar 10mm Diam 4 Flute Solid Carbide 0.2mm Corner Radius End Mill Uncoated, 92mm OAL, 15mm LOC, 10mm Shank Diam, Variable° Helix, RH Cut, RH Flute, 50mm Extended Reach 5623229 - 30730758
Brand: Iscar- SKU:
- 30730758
- ID:
- 615786
$180.39
Iscar 10mm Diam 4 Flute Solid Carbide 0.2mm Corner Radius End Mill Uncoated, 92mm OAL, 15mm LOC, 10mm Shank Diam, Variable° Helix, RH Cut, RH Flute, 50mm Extended Reach
Manufacturer Part #: 5623229
S/N: 30730758
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Decimal Inch) | 0.3937 |
| Mill Diameter (mm) | 10.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 15.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | Uncoated |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0079 |
| Variable Index | No |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.20 |
| Overall Length (mm) | 92.00 |
| Coolant Through | No |
| Pitch | Normal |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| Length Type | Long |
| Flute Type | Helical |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (mm) | 10.00 |
| Reach Length (Decimal Inch) | 1.9685 |
| Reach Length (mm) | 50.00 |
| Mill Diameter Tolerance | h6 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Material Grade | Fine Grain |
| Series | ECA-H4-CF |
| Product Service Code | 3455 |
| Material Application | Non-Ferrous Metal |
| Coating Classification | Uncoated |
| For Use With. | Toolholder |
| Helix Style | Variable |
