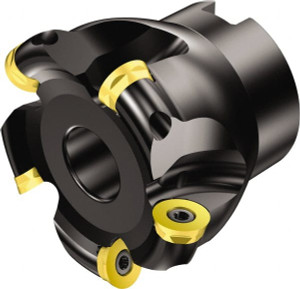

Sandvik Coromant 2-1/2" Cut Diam, 6.3mm Max Depth, 1" Arbor Hole, 50mm High, Indexable Copy Face Mill Takes 7 Inserts, R300-1340 Insert Style, RA300 Toolholder Style, Through Coolant, Series CoroMill 300 5739459 - 31799752
Brand: Sandvik Coromant- SKU:
- 31799752
- ID:
- 680599
$1,477.18
Sandvik Coromant 2-1/2" Cut Diam, 6.3mm Max Depth, 1" Arbor Hole, 50mm High, Indexable Copy Face Mill Takes 7 Inserts, R300-1340 Insert Style, RA300 Toolholder Style, Through Coolant, Series CoroMill 300
Manufacturer Part #: 5739459
S/N: 31799752
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Cutting Diameter (Inch) | 2-1/2 |
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (mm) | 6.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.2480 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | R300-1340 |
| Cutter Style | RA300 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | CoroMill 300 |
| Counterbore Diameter (Decimal Inch) | 1.0000 |
| Keyway Width (Decimal Inch) | 0.3838 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (Mm - 5 Decimals) | 50.00 |
| Insert Inscribed Circle (mm) | 13.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.5118 |
| Complete Insert Compatibility | R300-1340 |
| ISO Number | RA300-076R25-13H |
| Number Of Cutter Inserts | 7 |
| Coolant Through | Yes |
| Overall Diameter (Decimal Inch - 4 Decimals) | 3.0000 |
| UNSPSC Code | 27112803 |
