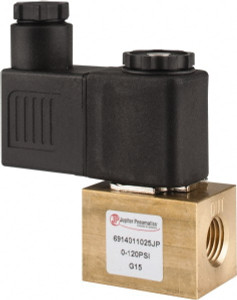

PRO-SOURCE 1/4", 2/2 Way Square Body Stacking Solenoid Valve 110 VAC, 0.18 CV Rate, 2.95" High x 2.64" Long 6914011025PRO - 31880172
Brand: PRO-SOURCE- SKU:
- 31880172
- ID:
- 577280
$74.58
PRO-SOURCE 1/4", 2/2 Way Square Body Stacking Solenoid Valve 110 VAC, 0.18 CV Rate, 2.95" High x 2.64" Long
Manufacturer Part #: 6914011025PRO
S/N: 31880172
UNSPSC: 40141605
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Type | 2/2 Way Square Body |
| Valve Design | 2-Way |
| Actuator Type | Direct Acting |
| Return Type | Spring |
| Inlet Size (Inch) | 1/4 |
| Outlet Size (Inch) | 1/4 |
| Voltage | 110V AC |
| Cv Rating | 0.180 |
| Maximum Working Pressure (Psi - 3 Decimals) | 120 |
| Maximum Working Temperature (F) | 194 |
| For Use With | Compressed Air, Light Oil, Water |
| Cubic Feet per Minute | 5.30 |
| Number Of Positions | 2 |
| Length (Decimal Inch - 4 Decimals) | 2.6400 |
| Height (Decimal Inch) | 2.9500 |
| UNSPSC Code | 40141605 |
