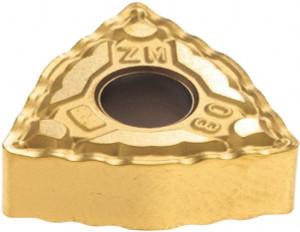

Tungaloy WNMG432ZM GT9530 Cermet Turning Insert 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Trigon 6998118 - 31918980
Brand: Tungaloy- SKU:
- 31918980
- ID:
- 677954
$17.95
Tungaloy WNMG432ZM GT9530 Cermet Turning Insert 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Trigon
Manufacturer Part #: 6998118
S/N: 31918980
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | WNMG |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80degree |
| Manufacturer Grade | GT9530 |
| Coating/Finish | TiCNO |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | WNMG-ZM |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Cermet |
| Insert Shape | Trigon |
| Number Of Cutting Edges | 6 |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.6500 - 0.7000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.6860 |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron |
| Primary Workpiece Material Code | P, M, K |
| Iso Code | WNMG 432 ZM |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 6998118 |
| Material Grade | P10, P20, M20, K10 |
| Coating Classification | PVD |
| Chip Breaker | ZM |
| Rake Angle | -7 |
| Cutting Edge Style | Honed |
| Industry Standard Number | WNMG 432 ZM |
| Width (Decimal Inch - 4 Decimals) | 0.6860in |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Turning, Facing, Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
