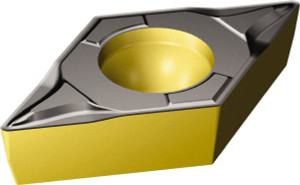

Sandvik Coromant DCMT32.51-MF 2220 Carbide Turning Insert TiCN/AI2O3/TiN Finish, Neutral, 3/8" Inscribed Circle, 1/64" Corner Radius, 55° Diamond, Series CoroTurn 107 7231365 - 32375917
Brand: Sandvik Coromant- SKU:
- 32375917
- ID:
- 674924
$21.97
Sandvik Coromant DCMT32.51-MF 2220 Carbide Turning Insert TiCN/AI2O3/TiN Finish, Neutral, 3/8" Inscribed Circle, 1/64" Corner Radius, 55° Diamond, Series CoroTurn 107
Manufacturer Part #: 7231365
S/N: 32375917
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 7 |
| Insert Style | DCMT |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 55 |
| Manufacturer Grade | 2220 |
| Coating/Finish | TiCN, AI2O3, TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 3.97 |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | CoroTurn 107 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Iso Code | DCMT 11 T3 04-MF 2220 |
| Chip Breaker | MF |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.51 |
