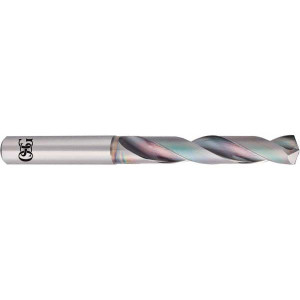

OSG 1/8" 140° Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 74mm OAL 631012311 - 32466914
Brand: OSG USA, INC.- SKU:
- 32466914
- ID:
- 725709
$82.01
OSG 1/8" 140° Solid Carbide Jobber Drill EgiAs Finish, Right Hand Cut, Spiral Flute, Straight Shank, 74mm OAL
Manufacturer Part #: 631012311
S/N: 32466914
UNSPSC: 23241634
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 1/8 |
| Drill Bit Size (mm) | 3.18 |
| Drill Bit Size (Decimal Inch) | 0.1250 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | EgiAs |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | X-Thinned |
| Primary Workpiece Material | Steel, Alloy Steel, Cast Iron |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P, K, H |
| Overall Length (mm) | 74.00 |
| Spiral Type | Regular |
| Flute Length (mm) | 28.00 |
| Series | 6310 |
| Tool Application | Blind Hole, Cross Hole, Drilling, Self-Centering |
| Flute By Diameter Ratio | 4xD |
| Shank Diameter (Inch) | 1/8 |
| Drill Bit Diameter Tolerance | +0 to -0.018 mm |
| Web Thinning | X-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Tool Performance | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.1000 - 0.1500 |
| UNSPSC Code | 23241634 |
