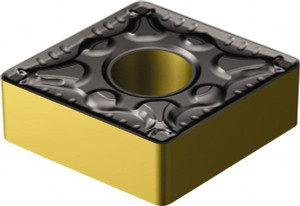

Sandvik Coromant CNMG432-PM 4335 Carbide Turning Insert TiCN/AI2O3/TiN Finish, Neutral, 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Diamond, Series T-Max P 7080821 - 32590424
Brand: Sandvik Coromant- SKU:
- 32590424
- ID:
- 674174
$23.57
Sandvik Coromant CNMG432-PM 4335 Carbide Turning Insert TiCN/AI2O3/TiN Finish, Neutral, 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Diamond, Series T-Max P
Manufacturer Part #: 7080821
S/N: 32590424
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 0 |
| Insert Style | CNMG |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 80 |
| Manufacturer Grade | 4335 |
| Coating/Finish | TiCN, AI2O3, TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | T-Max P |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Carbide |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.16 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Iso Code | CNMG 12 04 08-PM 4335 |
| Chip Breaker | PM |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
