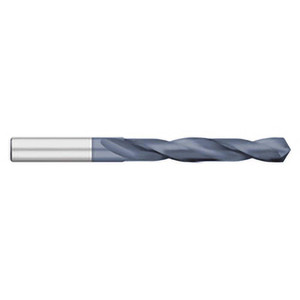

Titan USA Jobber Length Drill Bits, Drill Bit Size (Wire): #7, Drill Bit Size (Decimal Inch): 0.2010, Drill Point Angle: 118, Drill Bit Material: Solid Carbide, Drill Bit Finish/Coating: AlTiN, Cutting Direction: Right Hand TC79207 - 33121138
Brand: Titan USA- SKU:
- 33121138
- ID:
- 728143
$45.45
Titan USA Jobber Length Drill Bits, Drill Bit Size (Wire): #7, Drill Bit Size (Decimal Inch): 0.2010, Drill Point Angle: 118, Drill Bit Material: Solid Carbide, Drill Bit Finish/Coating: AlTiN, Cutting Direction: Right Hand
Manufacturer Part #: TC79207
S/N: 33121138
UNSPSC: 23241634
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Wire) | #7 |
| Drill Bit Size (Decimal Inch) | 0.2010 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | ALTiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split Point |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium |
| Coolant Through | No |
| Number of Flutes | 2 |
| Flute Length (Inch) | 1-3/4 |
| Primary Workpiece Material Code | P, M, K, S |
| Shank Diameter (Decimal Inch) | 0.2010 |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3 |
| Spiral Type | Regular |
| Flute Length (Decimal Inch) | 1.7500 |
| Series | TC79 |
| Tool Application | Drilling |
| Flute By Diameter Ratio | 9xD |
| Maximum Drilling Depth (Decimal Inch) | 1.7500 |
| Maximum Drilling Depth (Inch) | 1-3/4 |
| Shank Length (Decimal Inch) | 1.2500 |
| Shank Length (Inch) | 1-1/4 |
| Number of Flats | 0 |
| Drill Bit Diameter Tolerance | -0.0005 to +0.0000 |
| Shank Type | Straight-Cylindrical |
| Tool Performance | General Purpose |
| Double Margin | No |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| UNSPSC Code | 23241634 |
