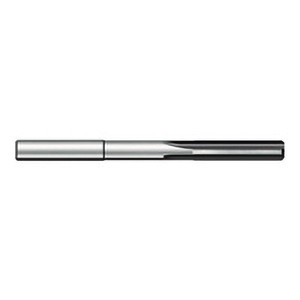

Titan USA Chucking Reamers, Reamer Diameter (Decimal Inch): 0.2510, Reamer Material: Solid Carbide, Overall Length (Decimal Inch): 3.0000, Overall Length (Inch): 3, Flute Length (Inch): 1, Flute Length (Decimal Inch): 1.0000 TC87313 - 33128505
Brand: Titan USA- SKU:
- 33128505
- ID:
- 756641
$84.22
Titan USA Chucking Reamers; Reamer Diameter (Decimal Inch): 0.2510 ; Reamer Material: Solid Carbide ; Overall Length (Decimal Inch): 3.0000 ; Overall Length (Inch): 3 ; Flute Length (Inch): 1 ; Flute Length (Decimal Inch): 1.0000
Manufacturer Part #: TC87313
S/N: 33128505
UNSPSC: 23241611
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Reamer Diameter Range (Decimal Inch) | 0.2500 - 0.2999 |
| Reamer Diameter (Decimal Inch) | 0.2510 |
| Tool Material | Solid Carbide |
| Flute Type | Straight |
| Spiral Direction | Straight |
| Coating/Finish | Bright/Uncoated |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Dowel Pin Reamer | No |
| Over/Under Size Reamer | No |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Number of Flutes | 4 |
| Flute Length (Inch) | 1 |
| Reamer Diameter Tolerance | +0.0003 to -0.0000 in |
| Series | TC87 |
| Cutting Direction | Right Hand |
| Additional Information | Reamers, Carbide, Reaming |
| UNSPSC Code | 23241611 |
