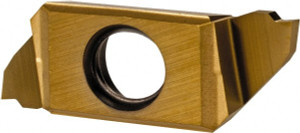

Iscar SCIR22-100NP08 IC1008 Carbide Cutoff Insert TiAlN/TiN Finish, Neutral Lead Angle, RH Insert, 1mm Cutting Width, 0.08mm Corner Radius, Series Swisscut 6410069 - 33172214
Brand: Iscar- SKU:
- 33172214
- ID:
- 646756
$61.85
Iscar SCIR22-100NP08 IC1008 Carbide Cutoff Insert TiAlN/TiN Finish, Neutral Lead Angle, RH Insert, 1mm Cutting Width, 0.08mm Corner Radius, Series Swisscut
Manufacturer Part #: 6410069
S/N: 33172214
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | SCIR |
| Insert Size Code | 22 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC1008 |
| Cutting Width (Decimal Inch) | 0.0394 |
| Cutting Width (mm) | 1.00 |
| Insert Holding Method | Screw |
| Lead Angle Direction | Neutral |
| Insert Hand | Right Hand |
| Relief Angle | 9.00 |
| Corner Radius (mm) | 0.08 |
| Corner Radius (Decimal Inch) | 0.0032 |
| Chipbreaker | P |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving, Parting, Turning |
| Series | Swisscut |
| Coating Process | PVD |
| Overall Length (mm) | 22.00 |
| Overall Length (Decimal Inch) | 0.8661 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, N, P, S |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Cutting Height (mm) | 7.00 |
| Cutting Height (Decimal Inch) | 0.2756 |
| Manufacturers Catalog Number | SCIR 22-100NP08 |
| Maximum Depth of Cut (mm) | 3.00 |
| Material Grade | C1, C2, C3, C5, C6 |
| Full Radius | No |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1181 |
| Overall Width (mm) | 3.00 |
| Coating/Finish | TiAlN, TiN |
| Single Or Double End | Single |
| Product Service Code | 3455 |
