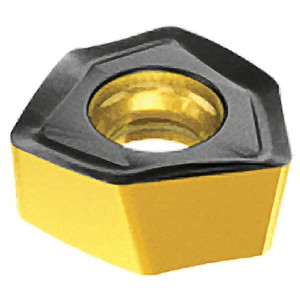

Iscar H600WXCU05T312HP IC882 Carbide Milling Insert TiAlN/TiN Finish 3309413 - 33596305
Brand: Iscar- SKU:
- 33596305
- ID:
- 660172
$60.95
Iscar H600WXCU05T312HP IC882 Carbide Milling Insert TiAlN/TiN Finish
Manufacturer Part #: 3309413
S/N: 33596305
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | WXCU |
| Insert Size | 05 |
| Insert Material | Solid Carbide |
| Insert Shape | Trigon |
| Manufacturer Grade | IC882 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Number Of Cutting Edges | 6 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1650 |
| Coating/Finish | AlTiN, TiAlSiN, TiSiN |
| Relief Angle | 0 |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| Insert Size Code | 05T312 |
| Width (Inch) | 21/64 |
| Length (Inch) | 21/64 |
| Inscribed Circle (Inch) | 21/64 |
| Inscribed Circle (Decimal Inch) | 0.3280 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Inch) | 3/64 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Right Hand |
| Series | HELI6FEED |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.2165 |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | M, S |
| Secondary Workpiece Material Code | S |
| Ansi Code | H600 WXCU 05T312HP IC882 |
| Iso Code | H600 WXCU 05T312HP |
| Standards | ANSI, ISO 13399 |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | H600 WXCU 05T312HP IC882 |
| Cutter Series Compatibility | FWX, EWX |
| Chip Breaker | HP |
| Material Application | Stainless Steel, Superalloys & Titanium |
| Insert Holding Method | Screw |
| Product Service Code | 3455 |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 80 |
| Width (Decimal Inch - 4 Decimals) | 0.3280 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3280 |
