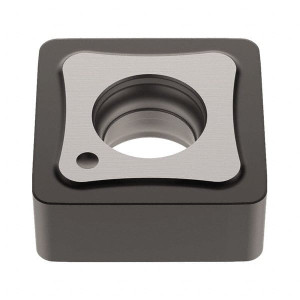

Seco Tools SNMU120410TN-MD13 Carbide Milling Insert TiCN/Al2O3 Finish, 12mm Long x 5mm Thick x 12mm Wide 03091462 - 33672734
Brand: Seco Tools- SKU:
- 33672734
- ID:
- 662486
$36.60
Seco Tools SNMU120410TN-MD13 Carbide Milling Insert TiCN/Al2O3 Finish, 12mm Long x 5mm Thick x 12mm Wide
Manufacturer Part #: 03091462
S/N: 33672734
UNSPSC: 23291601
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Insert Style | SNMU |
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | MK1500 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1890 |
| Thickness (mm) | 5.00 |
| Coating/Finish | TiCN, Al2O3 |
| Relief Angle | 0 |
| Maximum Depth of Cut (Decimal Inch) | 0.3858 |
| Maximum Depth of Cut (mm) | 12.00 |
| Insert Size Code | 120410 |
| Material Grade | Micrograin |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Inscribed Circle (mm) | 12.00 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Neutral |
| Series | SNMU-12 |
| Coating Process | CVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.4724 |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | SNMU120410TN-MD13 |
| Iso Code | SNMU120410TN-MD13 |
| Standards | ISO |
| Rake Angle | 0 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | SNMU120410TN-MD13 |
| Cutter Series Compatibility | R220.88-12 |
| Chip Breaker | MD13 |
| Material Application | Cast Iron |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | Duratomic |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Length (mm) | 12.00 |
| Width (Decimal Inch - 4 Decimals) | 0.4724 |
| Width (mm - 2 Decimals) | 12.00 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4724 |
